Diamond Carving Burs

Diamond Carving Burs – Precision Diamond Burs for Stone Carving, Glass Engraving & Gemstone Sculpting

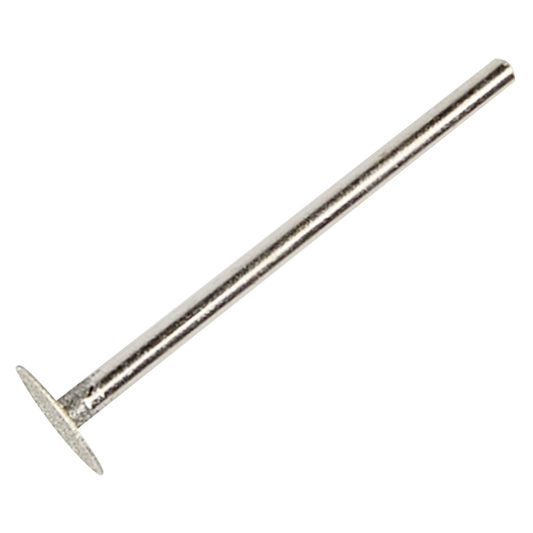

Our Diamond Carving Burs collection covers the full spectrum of rotary carving and engraving needs — from ultra-fine 0.3mm needle tips for detail engraving through to 20mm countersink and donut burs for larger carving and shaping work. With 44 profiles including flat end, tapered, needle, round ball, teardrop, bullet, hollow cup, flat disc, donut, and countersink shapes, these diamond burs are the essential toolkit for lapidary carvers, glass engravers, jewelry makers, and gemstone sculptors. Compatible with Dremel, flex shaft machines, and pendant drills.

🔥 Shop Diamond Carving Burs – From $6.00

Product Format Guide

Profile Size Range Price Range Best For

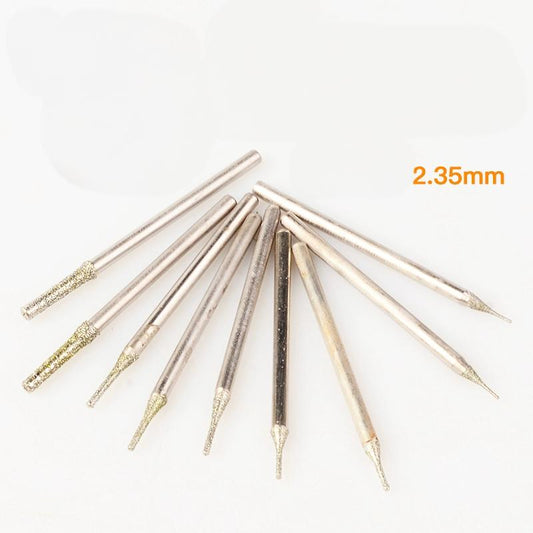

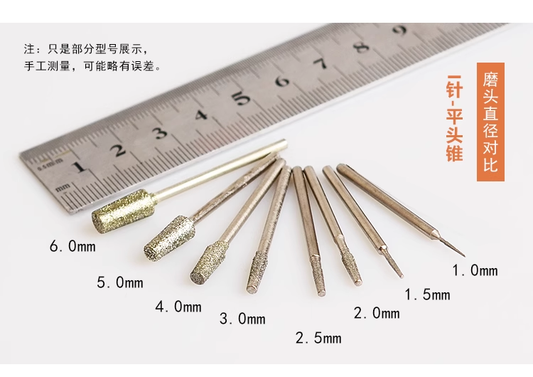

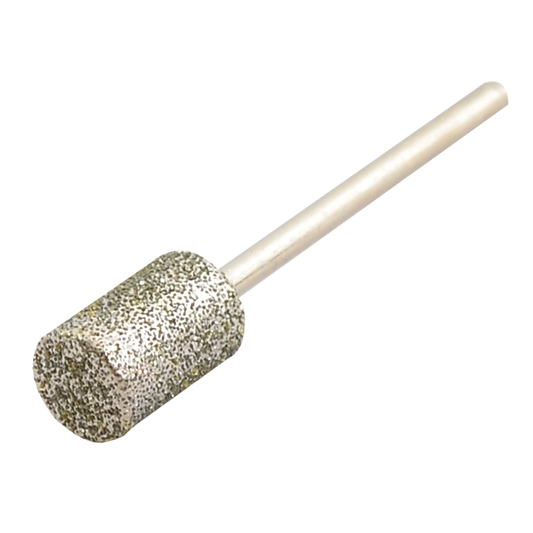

Flat End / Tapered Flat End 0.4mm–4.0mm $6.00–$20.00 Flat-bottomed recesses, channel carving, facet work

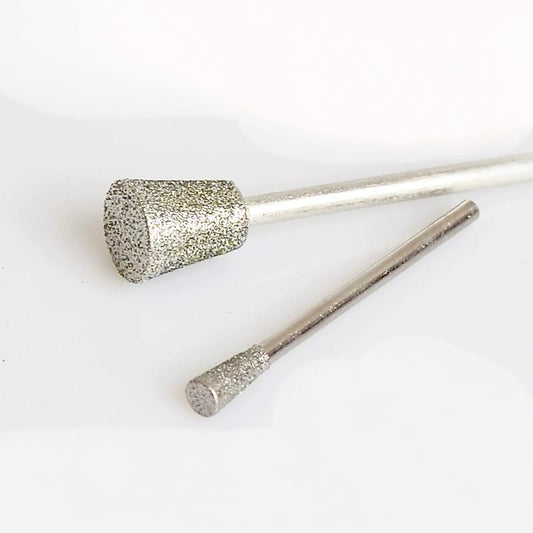

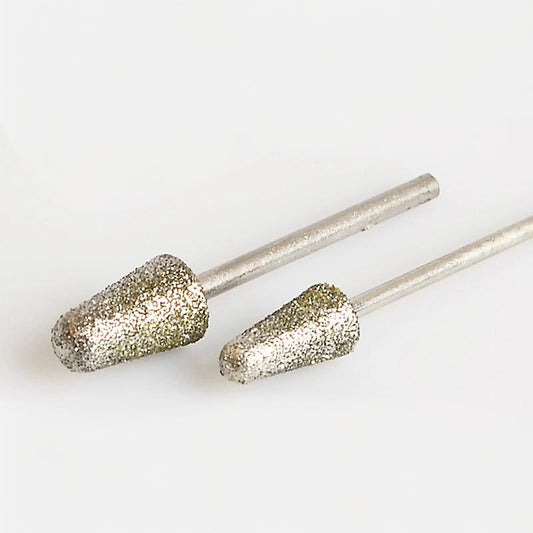

Tapered Inverted Cone Hollow 0.8mm–3.0mm $6.50–$8.00 Cone-shaped recesses, stone setting preparation

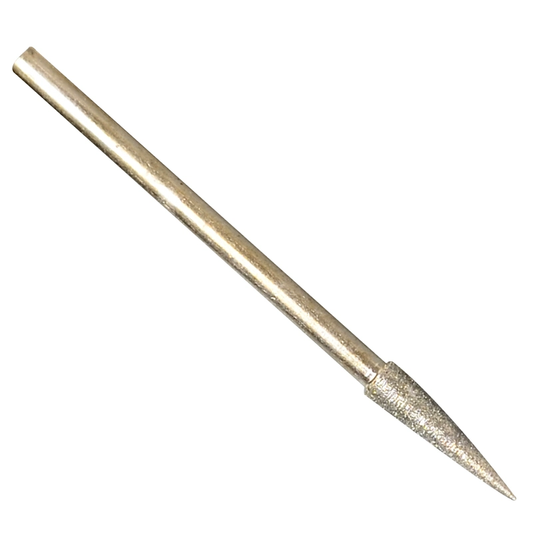

Needle 1.3mm–1.8mm $20.00 Fine line engraving, lettering, detail carving on glass and stone

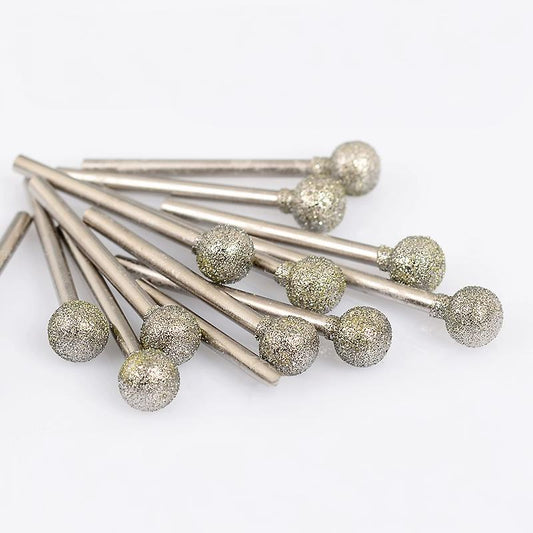

Round Ball 0.5mm $12.00 Rounded recesses, bead drilling, curved organic carving

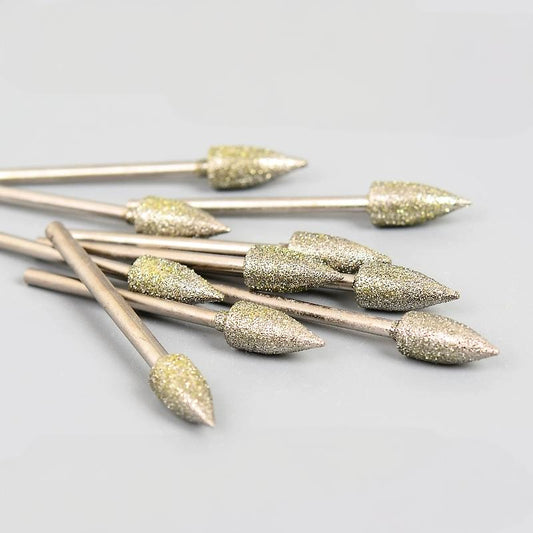

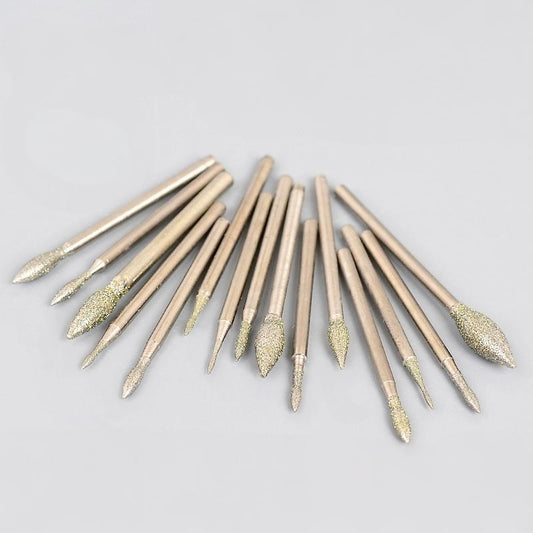

Teardrop / Bullet Head 0.8mm $12.00 Smooth curved carving, organic shapes, flowing contours

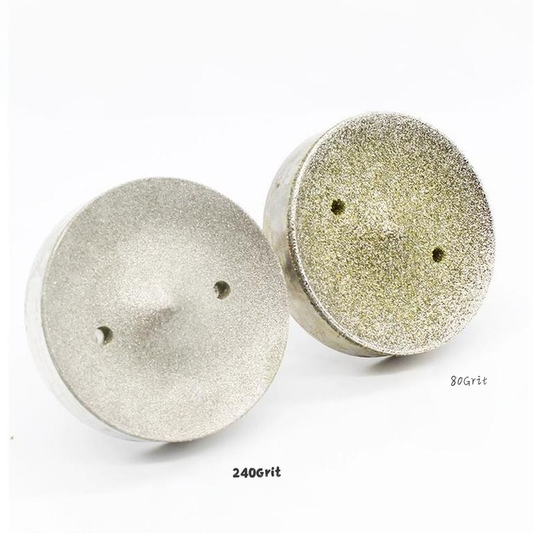

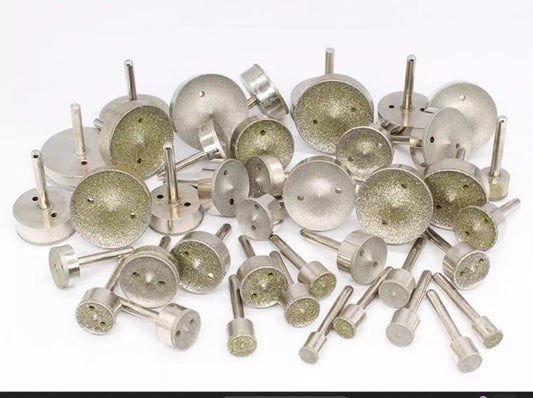

Diamond Donut 10mm $14.00 Large curved recesses, specialty carving, concave surfaces

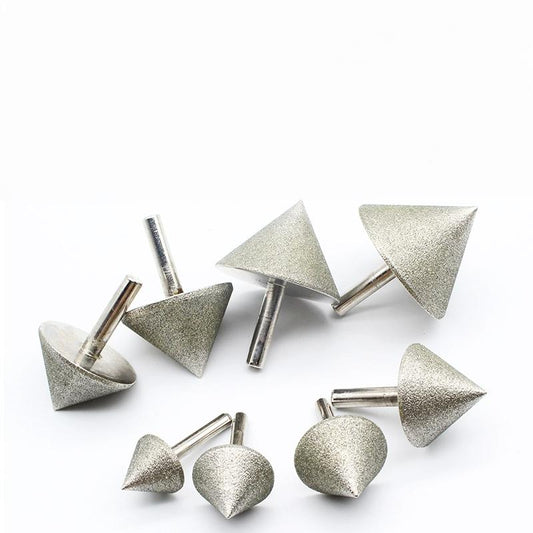

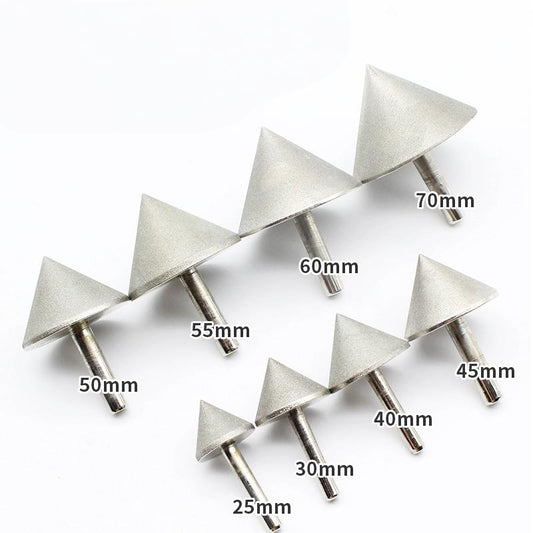

Countersink 10mm, 20mm $7.00 Countersink holes, chamfering edges on stone and glass

Bur Profile Selection Guide

Carving Task Recommended Profile Speed
Fine line engraving on glass Needle bur 1.3–1.8mm 10,000–15,000 RPM
Initial rough shaping on stone Flat end cylinder, large size 5,000–8,000 RPM
Rounded recesses and dome carving Round ball bur 8,000–12,000 RPM
V-grooves and setting prep Tapered inverted cone 8,000–12,000 RPM
Organic curved surfaces Bullet / teardrop bur 8,000–12,000 RPM
Large concave carving Diamond donut 10mm 5,000–8,000 RPM

Compatible Applications

  • Stone carving — agate, jasper, jade, obsidian, quartz, and lapidary stone sculpting
  • Glass engraving — fine line lettering, patterns, and designs on art glass and fused glass
  • Gemstone sculpting — organic shapes, relief carving, and surface texture on hard gemstones
  • Jewelry stone setting preparation — tapered cone burs for bezel and prong setting recesses
  • Ceramic and porcelain engraving — surface detail work on fired ceramic and porcelain
  • Dremel, flex shaft, and pendant drill use — 1/8" shank for all standard rotary tool chucks

Related Tools

Frequently Asked Questions

  • Q: What diamond bur should I use to carve designs into rocks and gemstones with a Dremel?
    A: Use flat end cylinder burs for flat-bottomed recesses and channel carving, needle burs for fine line engraving, round ball burs for rounded recesses and organic curved shapes, and tapered inverted cone burs for V-shaped grooves. Always use wet — apply water continuously to cool the bur and stone during carving.
  • Q: What is the best diamond bur for engraving lettering and designs on glass?
    A: Use fine needle burs (1.3mm–1.8mm) for line work and lettering, flat end cylinder burs for shading and surface texture, and ball burs for stippling and dot patterns. Work at 10,000–15,000 RPM with light pressure and keep the glass wet.
  • Q: What RPM speed should I use for diamond carving burs on stone and glass?
    A: Use 5,000–10,000 RPM for hard stones like agate, jasper, and jade. Use 10,000–15,000 RPM for softer stones and glass engraving. Always use water cooling regardless of speed.
